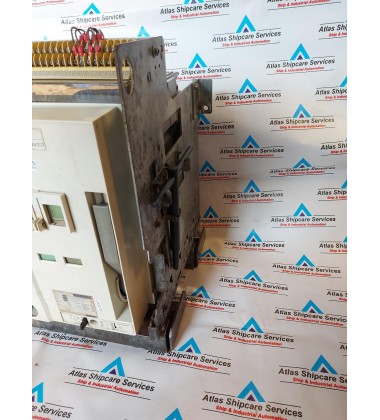

MITSUBISHI AE1600-SW LOW VOLTAGE AIR CIRCUIT BREAKER
MITSUBISHI AE1600-SW LOW VOLTAGE AIR CIRCUIT BREAKER
Product Description
MITSUBISHI AE1600-SW LOW VOLTAGE AIR CIRCUIT BREAKER
MITSUBISHI ELECTRIC CORPORATION

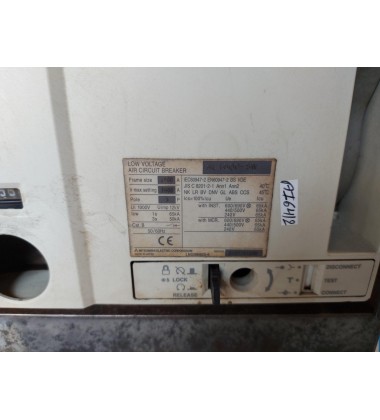

MODEL : AE1600-SW
LOW VOLTAGE AIR CIRCUIT BREAKER
FRAME SIZE : 1600A
IR MAX SETTING : 1600A
POLE : 3P
Ui : 1000V
Uimp : 12kV
Icw : 1s 65kA
3s 50kA
CAT.: B
50/60Hz
IEC60947-2 EN60947-2 BS VDE
JIS C 8201-2-1 Ann1 Ann 2 40'C
NK LR BV DNV GL ANS CCS 45'C
Ics = 100%
LN330N925-5
SERIAL.NO : S10216105W,S10216106W

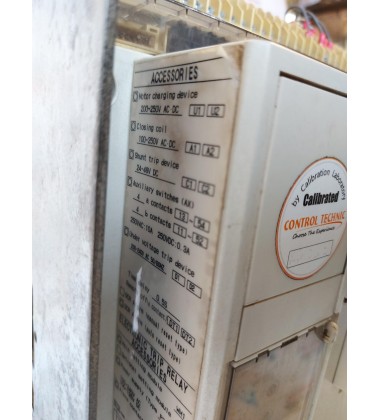

MOTOR CHARGING DEVICE
200-250V AC-DC U1 U2
CLOSING COIL : 100-250V AC-DC A1 A2
SHUNT TRIP DEVICE : 24-48V DC C1 C2
AUXILIARY SWITCHES (AX)
4 a CONTACTS 13 ~ 54
4 b CONTACTS 11 ~ 52
250VAC:10A 250VDC : 0.3A

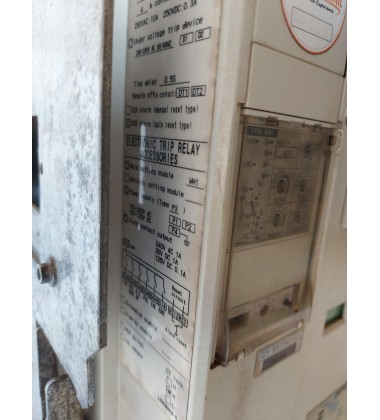

UNDER VOLTAGE : 200-240V AC
50/60Hz D1 D2
TIME DELAY : 0.5s

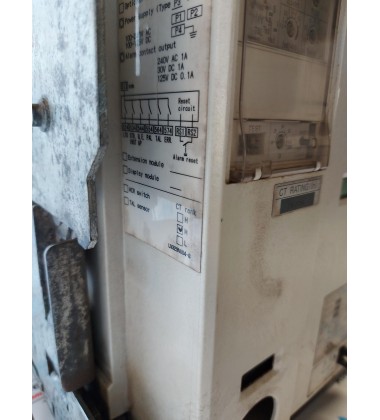

ALARM CONTACT OUTPUT : 240V AC 1A
30V DC 1A
125V DC 0.1A
LN329N604-8
MADE IN JAPAN
CONDITION : USED 2 PCS
REF.NO : AI64/66.Kg
